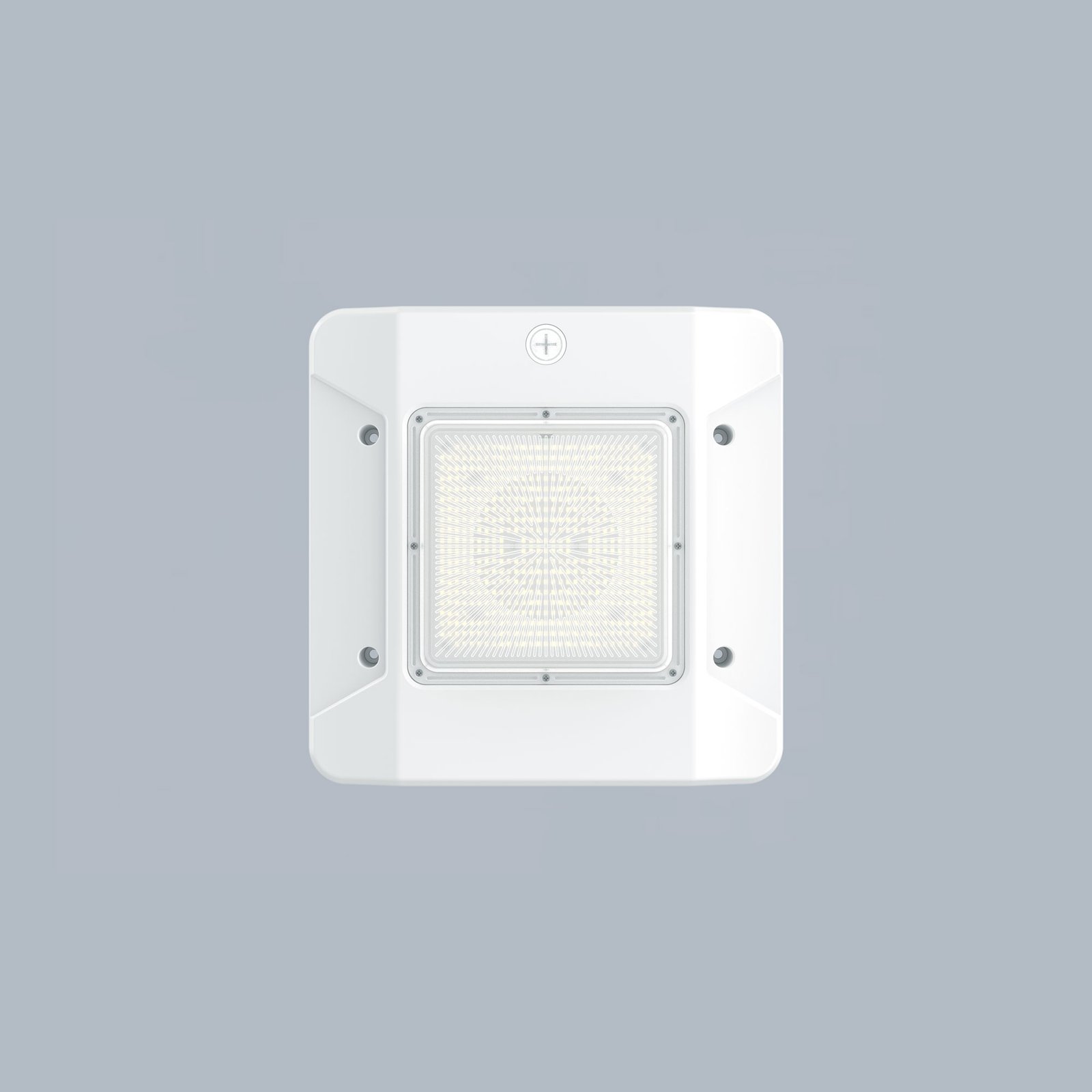

NEXA CANOPY LED GARAGE & CANOPY LIGHTS - Image 1
NEXA CANOPY LED GARAGE & CANOPY LIGHTS - Image 2
Click to enlarge
NEXA CANOPY LED GARAGE & CANOPY LIGHTS
NEXA CANOPY LED GARAGE & CANOPY LIGHTS - Image 2
NEXA CANOPY LED GARAGE & CANOPY LIGHTS
SKU: AL-11-8-002-CCT

QUICK INFO

Certified
UL / DLC 6.0P
Built-in Sensor
Photocell ON/OFF
CCT
5000K
Wattage
120/150/180W
Lumens
15600/19500/23400
Finishes
White

Applications:

Vast Distribution Centers / Open Storage Bays / Loading Docks / Receiving Decks / Big Box Retailers / Home Improvement Centers / Wholesale & Supply Showrooms / Commercial Gymnasiums / Fitness Centers / Recreational Facilities / Sports Complexes / Lecture Halls / University Libraries / Study Areas / Hospital Corridors / Nurses’ Stations / Government Offices / Municipal Buildings / Electronic Assembly Lines / Indoor Trampoline Parks / Adventure Parks / Aircraft Hangars / Public Transit Depots / Train Sheds / Exhibition & Convention Halls / Auction Houses / Large Event Centers / Automotive Service Bays / Commercial Woodworking Shops / Machining Shops

TECHNICAL SPECS

TECHNICAL SPECS

Electrical

Input Voltage: Universal 120–277V, 50 - 60Hz rating

120-480V option available, 6kV surge protection

Driver includes dimming control wiring for 0-10V systems.

The Dim-to-off voltage threshold of optional 12V

AUX integrated driver ranges from 0.1V to 0.5V

Construction

Aluminum die cast housing,

Polycarbonate frosted lens

Highly durable black finish

Performance

Suitable for wet locations Suitable for

installation in when input power

120/150/180W

Fixed CCT: 5000K

Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability, down to 10%

Operating temp range -40°F to 122°F (-40°C to 50°C)

Long-life, high-efficacy, micro-power leds

Lumen Maintenance,  L70 > 100,000 hours Power

Factor: ≥0.9 for stable performance

Total Harmonic Distortion: < 20%

Certifications & Regulatory

UL Listed for Wet Location

DLC 6.0 P

Warranty

5 Year Limited Warranty (see complete warranty terms for details)

Testing

IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory

KEY FEATURES

KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES
KEY FEATURES

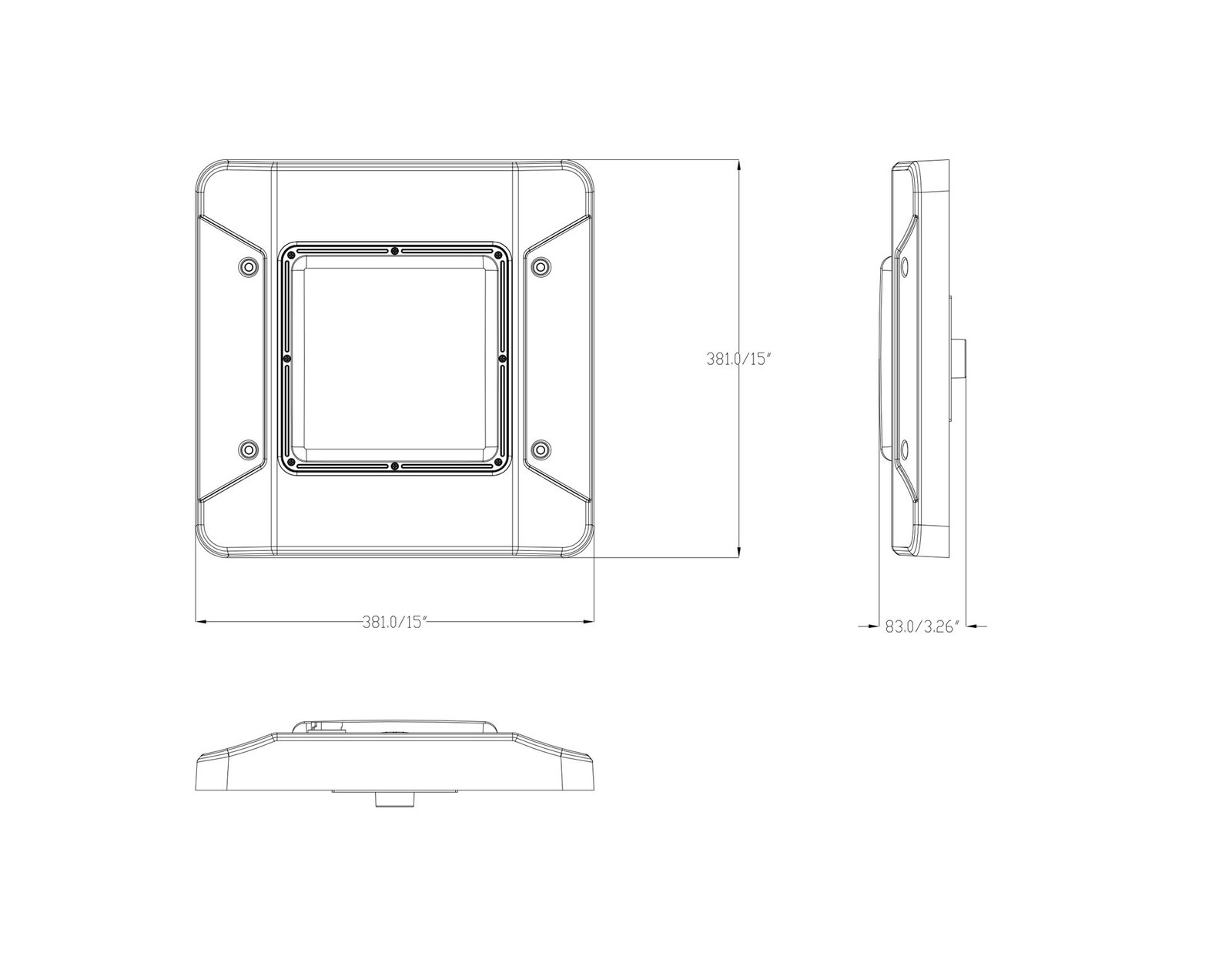

LINE DRAWING

LINE DRAWING

Mounting

performance

PART # WATTAGE CCT LUMENS EFFICACY (LM/W) COLOR ACCURACY (CRI)
AL-11-8-002 120/150/180W 5000K 15600/19500/23400 140 80

CONTROLS & SENSORS

ACCESSORIES

ZONE GLOW LED SHOEBOX LIGHTS

Documents & Download

120-277V INSTALLATION GUIDE

120-277V INSTALLATION GUIDE

COMPLIANCE

Logistics

PACKING CONFIGURATION
1 Units per Master Carton
PALLET DIMENSIONS & HEIGHT
48" x 48" X 75" (Non-Stackable)
SHIPPING CLASSIFICATION
Freight Class: 95
DELIVERY REQUIREMENT
Liftgate required if no loading dock or forklift is present on site

Packaging

PACKAGING CONFIGURATION MASTER CARTON DIMENSIONS MASTER CARTON WEIGHT STANDARD PALLET QUANTITY STANDARD PALLET WEIGHT STANDARD PALLET DIMENSION
AL-11-8-002-CCT 17.91" L x 17.91" W x 5.12" H 12.13 78 946.14 48" x 48" x 75"

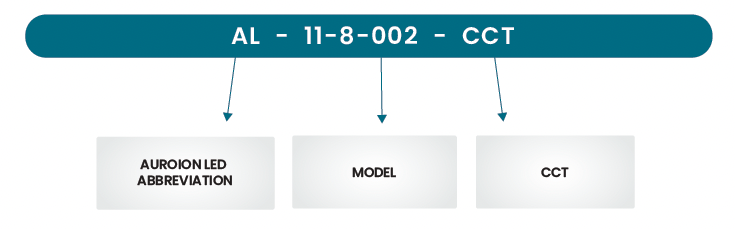

ORDERING MATRIX

Ordering Matrix

ORDERING INFORMATION: AL-11

MODEL WATTAGE VOLTAGE CCT OPTIONAL ADD-ONS COLOR
AL-11 = NEXA CANOPY LED GARAGE & CANOPY LIGHTS 120/150/180 = 120/150/180W [BLANK] = 120–277V CCT = 5000K EM = BATTERY BACKUP WH = WHITE
